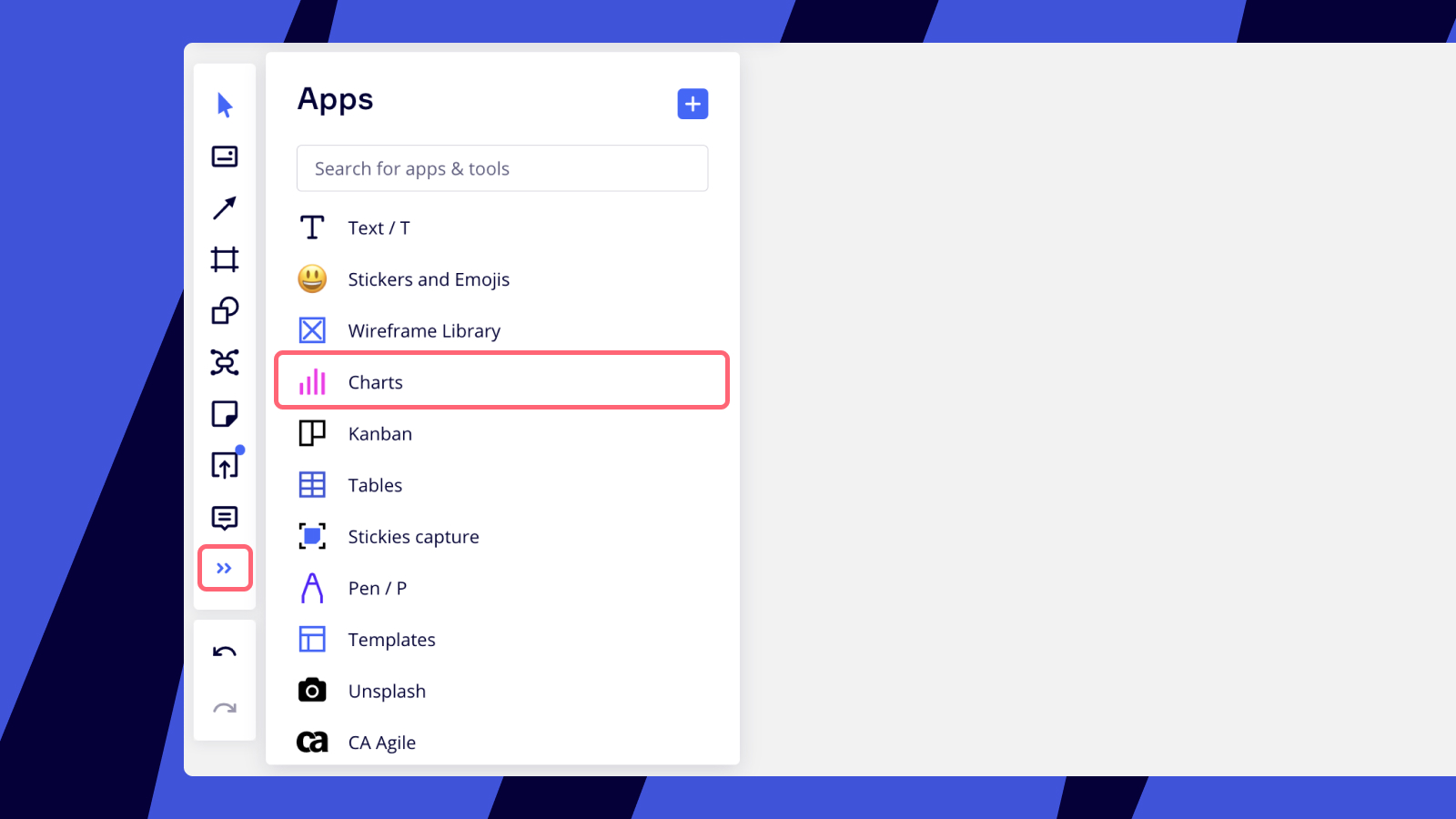

Create dashboards for operational meetings, prove ideas with data and visualize key figures using editable tables and charts in Miro. Click Charts, select what you'd like to add and double-click it or drag it to the board.
Tables and Charts
Charts

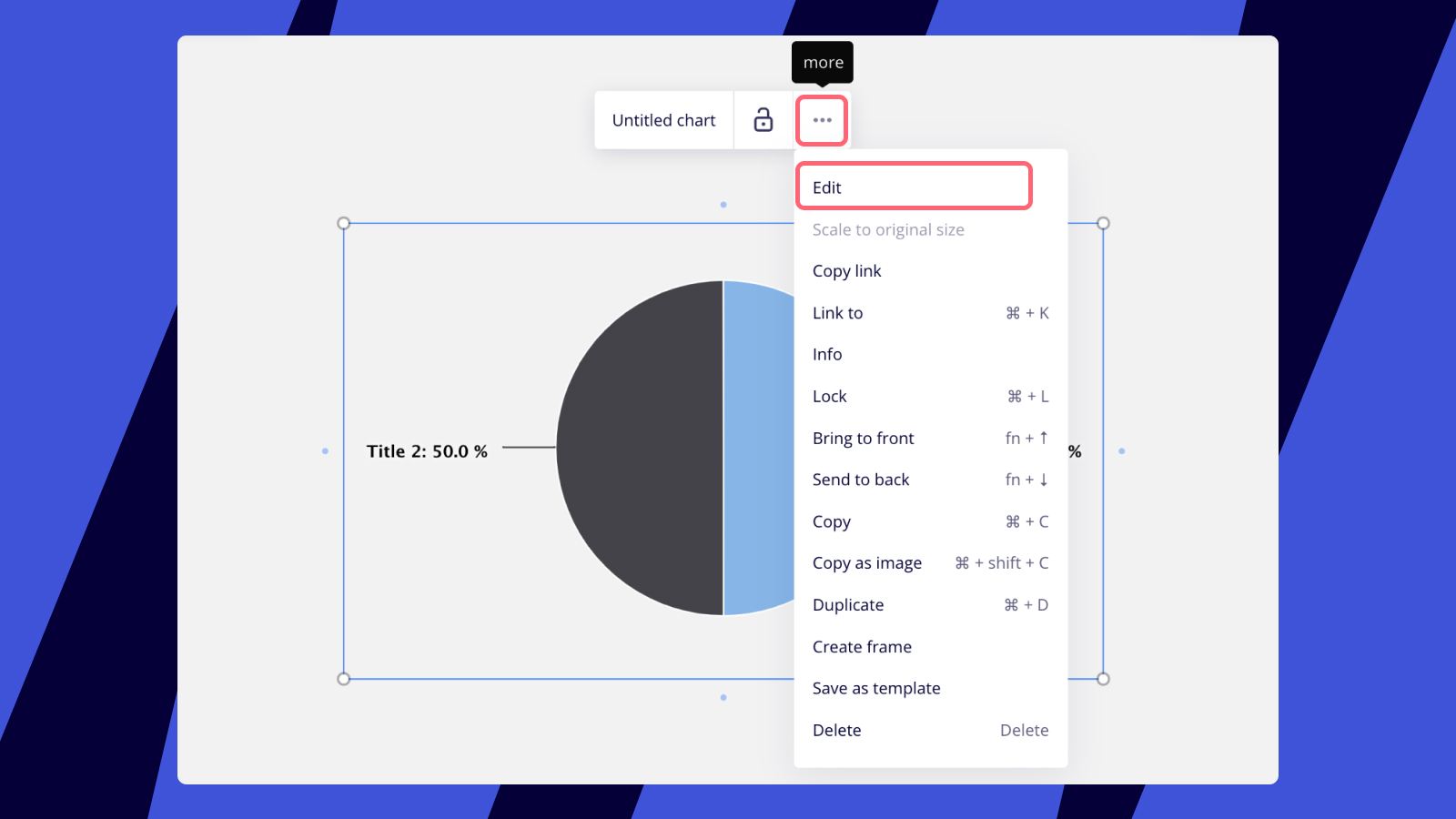

Right-click the object to open the context menu and click Edit or double-click the object to enter the Edit mode.
Editing the Chart

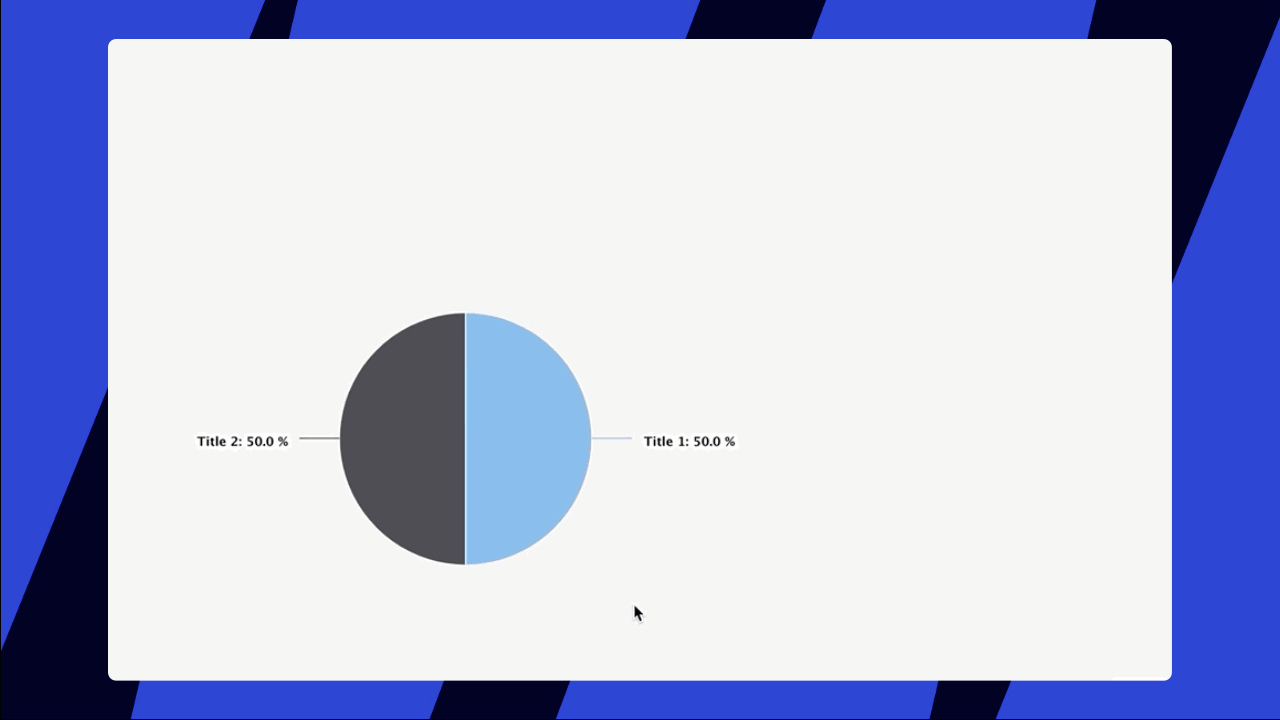

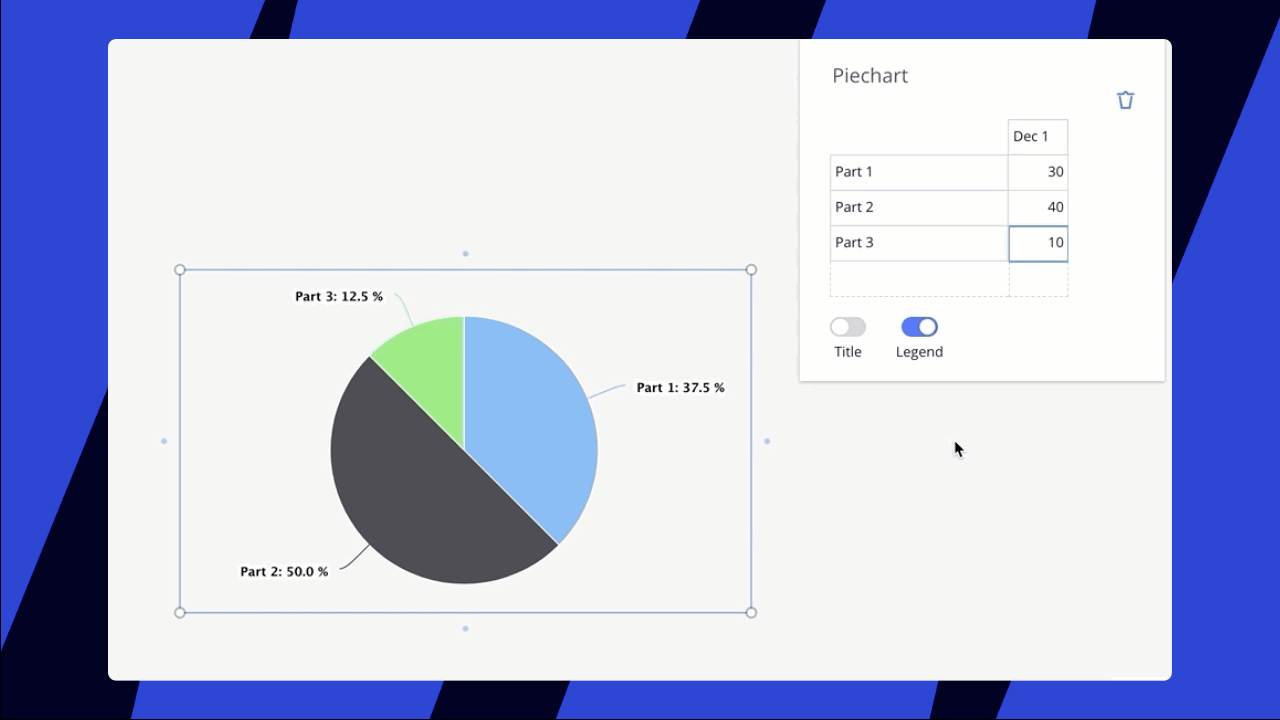

Choose the name and customize the legend to make your Chart more informative. Enable and disable Title and Legend toggles whenever you want.
To delete a row, select all cells of a row, click Trash icon and choose Delete Row.
Row deletion
Tables
We are turning off the ability to create old tables in Miro. Feel free to try new tables
If you want to edit a table, simply double-click the table you just added to the board or click Edit in the pop-up menu. It will open the Edit mode for the table:
Inserting a new row/column to the table
While in the Edit mode, you can change the properties of the table by choosing from the toolbar on the far right of the board. Feel free to add or remove rows or columns (try the +Insert and Trashcan icons, respectively), change the text and fill color, modify text alignment, or revert the last change (Undo icon).
Please note that, before hitting the Trashcan icon, you need to outline the full row or column in the table that you want to remove. To do that, click one of the grey cells at the sides or click and drag the cursor across a particular set of cells.
Deleting a column from the table
To exit the Edit mode and save the changes, choose Done at the bottom of the toolbar or simply click anywhere in the background of the table. Your progress will be saved instantaneously!
