Jira on-premise with third-party authorization using OAuth 2.0 reference – Miro Help Center

Who can do it: Company admins
Which plans: Enterprise

This article provides technical detail for using a third-party authorization server with OAuth 2.0 to integrate Jira with Miro.

To learn how to set up a connection, see Connect to Jira on-premise with third-party authorization servers using OAuth 2.0.

How Jira integration with Miro using on-premise authorization and OAuth 2.0 works

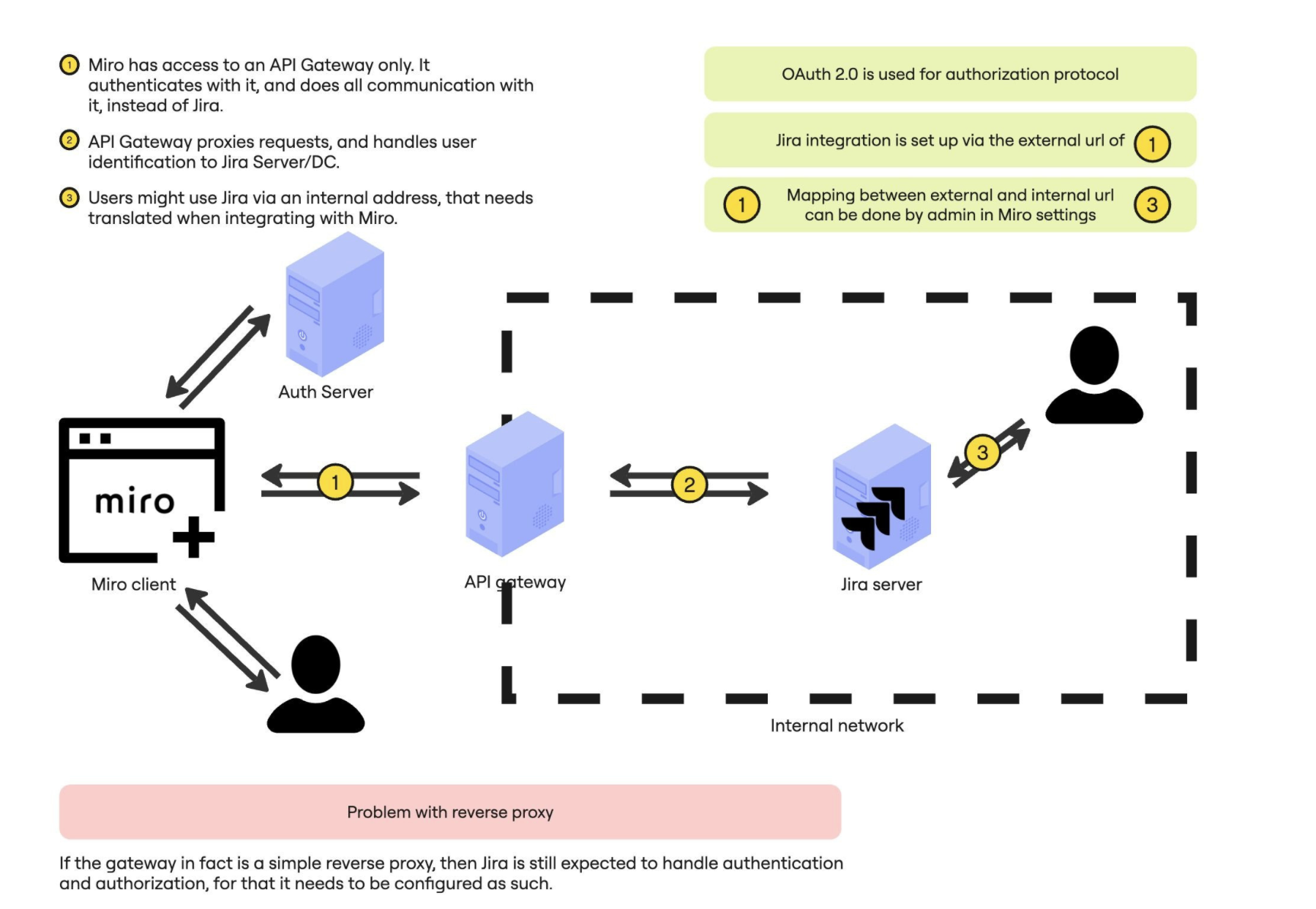

The following graph shows the communication flow between Miro and an on-premise Jira authorization server.

Miro and Jira integration using an on-premise authorization server via an API gateway

Configuration parameters

To configure the authorization flow between Miro and Jira using a third-party authorization server with OAuth 2.0, you must specify the following parameters:

Authorization server
- Authorization request URL
- Token request URL
- Scope
Authorization app configuration
- Client ID
- Client secret
Jira instance
- Jira public URL
- Jira base URL; internal URL

✏️ Miro provides the redirect URL that the authorization server validates agains the registered app.

More information: See Connect to Jira on-premise with third-party authorization servers using OAuth 2.0.

User authorization requests between Miro and on-premise authorization server

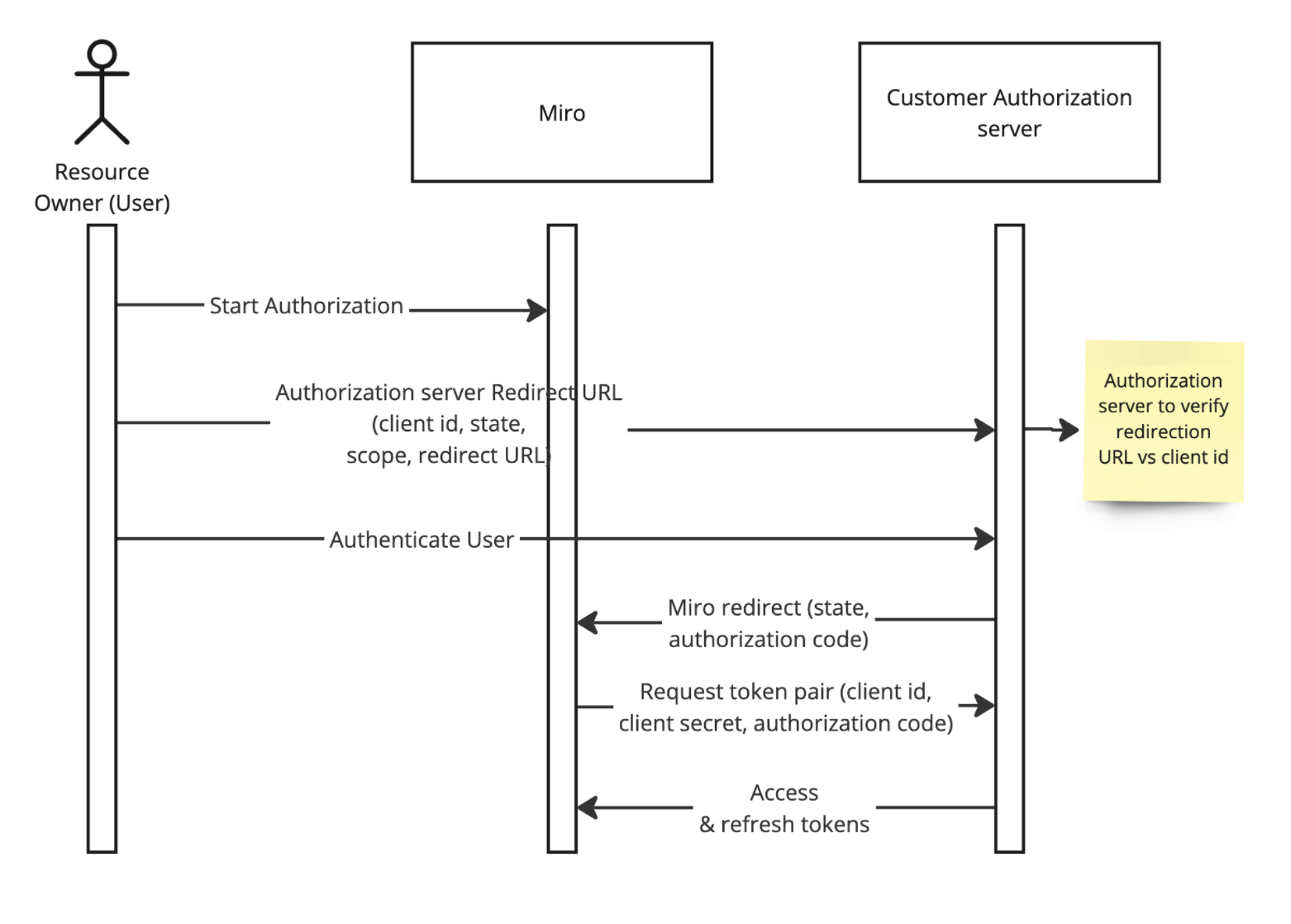

For an integration between Miro and Jira using a third-party authorization server, the following graph shows the user authorization request flow.

User authorization request

Authorization request

https://{authorization_URL}?
    response_type=code&
    client_id={CLIENT_ID}&
    redirect_uri={Miro Redirect URI}&
    scope={scope}&
    state={state}

The user can add parameters to the authorization request as key-value pairs in the configuration.

Token request

curl --request POST \
    --url '{token request URL}' \
    --header 'content-type: application/x-www-form-urlencoded' \
    --data grant_type=authorization_code \
    --data 'client_id={CLIENT_ID}' \
    --data 'client_secret={CLIENT_SECRET}' \
    --data 'code={Obtained Authorization Code}' \
    --data 'redirect_uri={Miro Redirect URI}' \

After Miro receives the authorization code, Miro provides the state and requests a token pair.

Refresh tokens exchange

curl --request POST \
    --url '{token request URL}' \
    --header 'content-type: application/x-www-form-urlencoded' \
    --data grant_type=refresh_token \
    --data 'client_id={CLIENT_ID}' \
    --data 'refresh_token={current valid refresh token}' \

Ensure that the refresh token operation is enabled; enable offline access to APIs.

Jira API requests

curl --request GET \
    --url {Jira Public URL}/rest/api/{apiversion}/... \
    --header 'authorization: Bearer {accessToken}' \
    --header 'content-type: application/json'

Each request uses the provided Jira public URL as the base URL, and the user access token as the bearer token.
